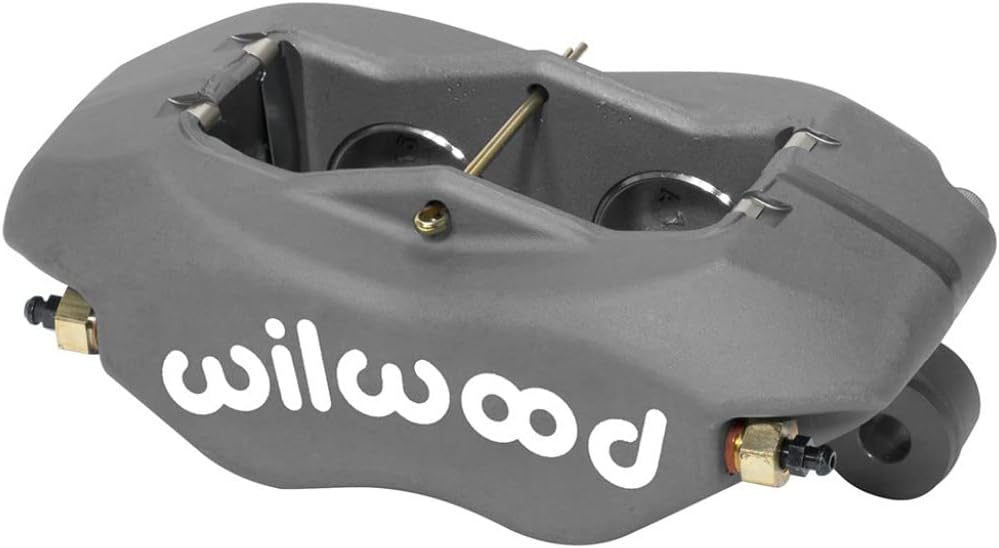

Forged Dynalite Caliper with 1.75in Pistons and .81in Disc F5084

Product Overview:
The Forged Billet Dynalite Has Wide Spread Application Over Many Forms Over Motorsports. It Serves As The Base Model In The Majority Of Wilwood's Bolt-On Disc Brake Kits. The Latest Applied Developments And Innovations In Caliper Design And Manufacturing Processes Have Resulted In Substantial Improvements In Strength And Performance Over All Comparable Models.
Product Info:
Wilwood Caliper-Forged Dynalite 1.75In Pistons .81In Discpiston Type: Stainlessmaterial: Aluminumfinish: Type Iii Anomount Side: Universalmount Type: Lug
Manufacturer Part Number:
Part Number: 120-6816

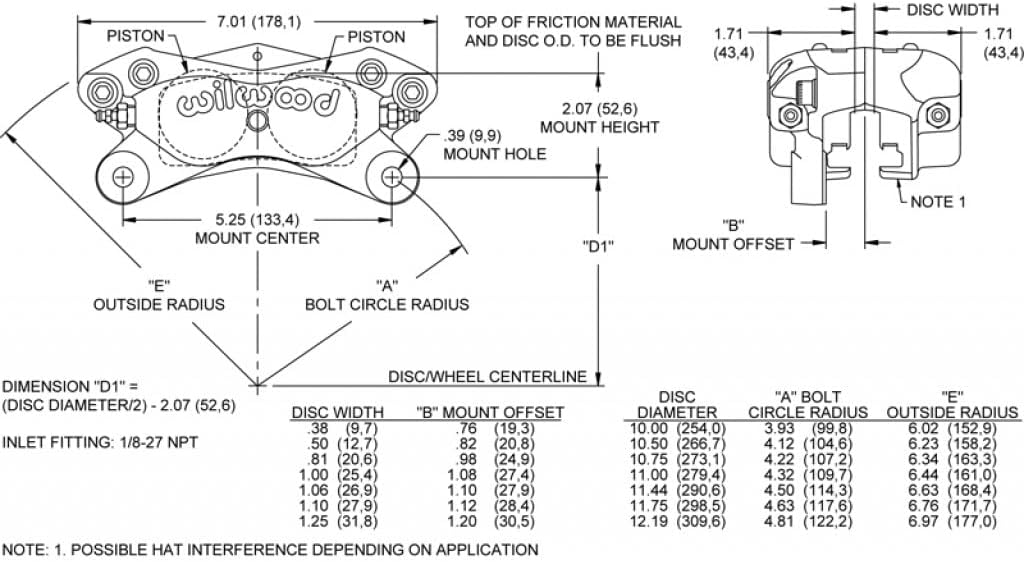

Specifications:
Pistonspiston Count: 4
Piston Area (In²): 4.80
Piston Type: Stainless
/ Boot: No

Rotor Dimensionsrotor Width (In): 0.81
Rotor Diameter(In): 13.06

Pad Dimensionspad Area (In²): 6.36
Pad Volume (In³): 2.1

Duty Rating & Materialmaterial: Aluminum
Weight(Lbs): 3.4

Colors & Finishcolor: Ano
Finish: Type Iii Ano

Mountingmount Center(In): 5.25
Mount Side: Universal
Mount Type: Lug

Guarantees And Warranties:
30-Day Satisfaction Guaranteesee Manufacturer's Website For Most Accurate Warranty Information.
